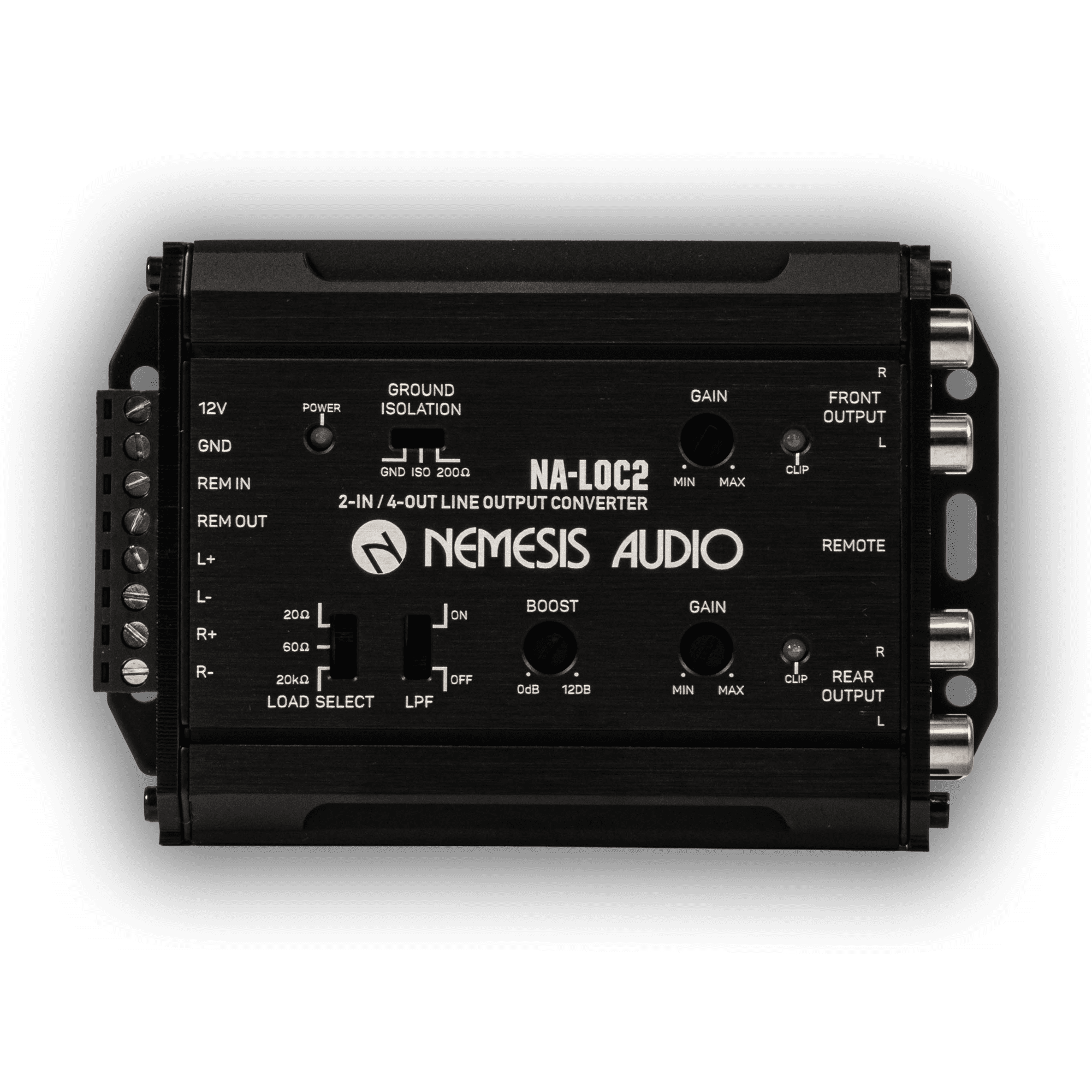

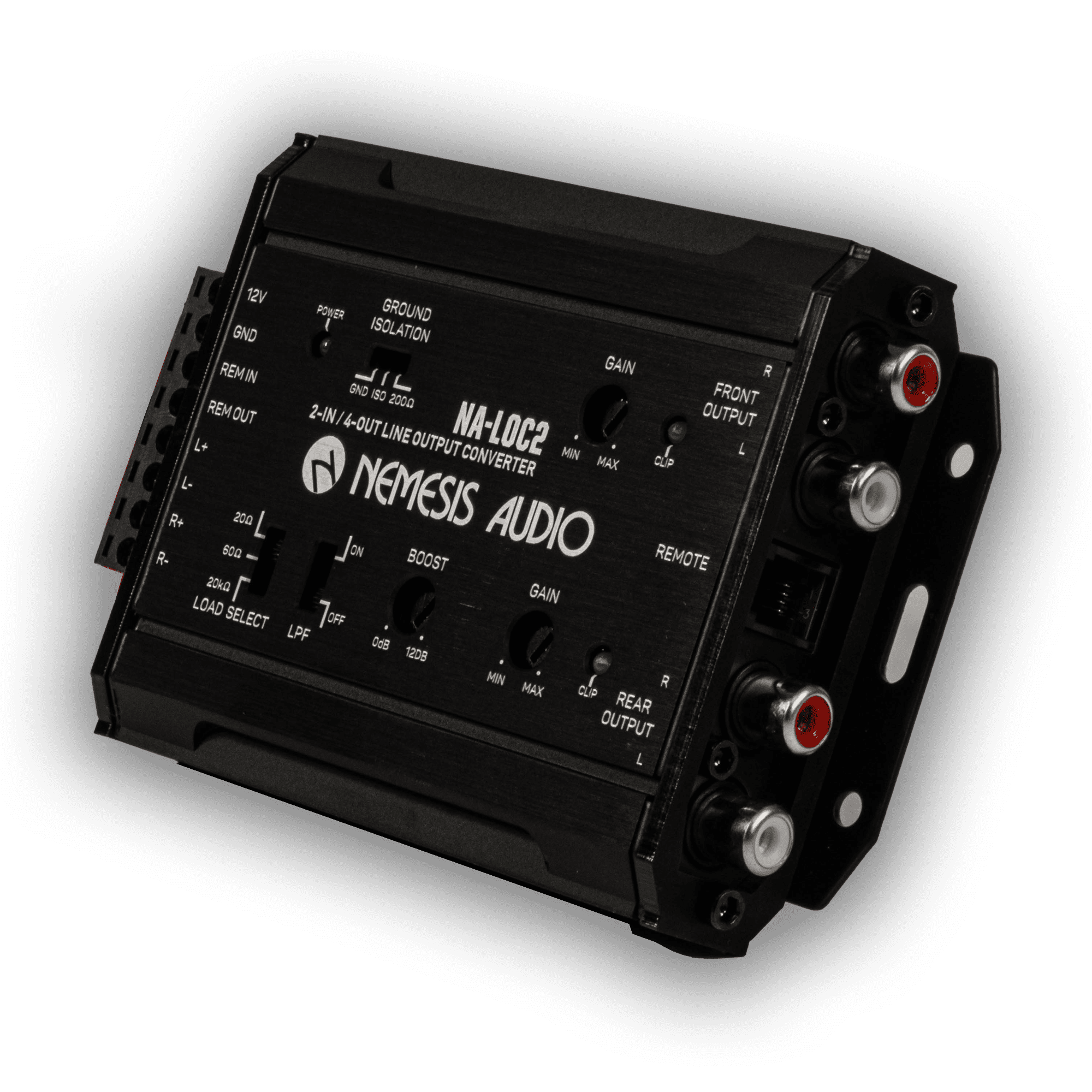

NA-LOC2

Description

Active Line Output Converter and Line Driver
2 Channels of Speaker-Level Inputs Handle up to 40V
4 Channels of RCA Outputs Provide up to 9.5V of Output
Designed to Work with Factory Audio Systems
Wired Remote Bass Level Control Included
Load Selection Switch (20, 60, or 20K Ohms) to Prevent Factory Stereo Shut-Down
Adjustable 0-12dB Bass Boost (Fixed at 45Hz)
Selectable Full Range or Low Pass Filter Switch (LPF for Rear Channel Only): 250Hz
12V Turn-On Output for Aftermarket Amplifiers
Selectable Ground Isolation Switch to Eliminate Ground and Alternator Noise
Molex Terminals for Speaker Signal and Power
LED Clip Indicator
Total Harmonic Distortion (THD): 0.01%
Signal to Noise Ratio: >110dB
Frequency Response: 10-20,000Hz
