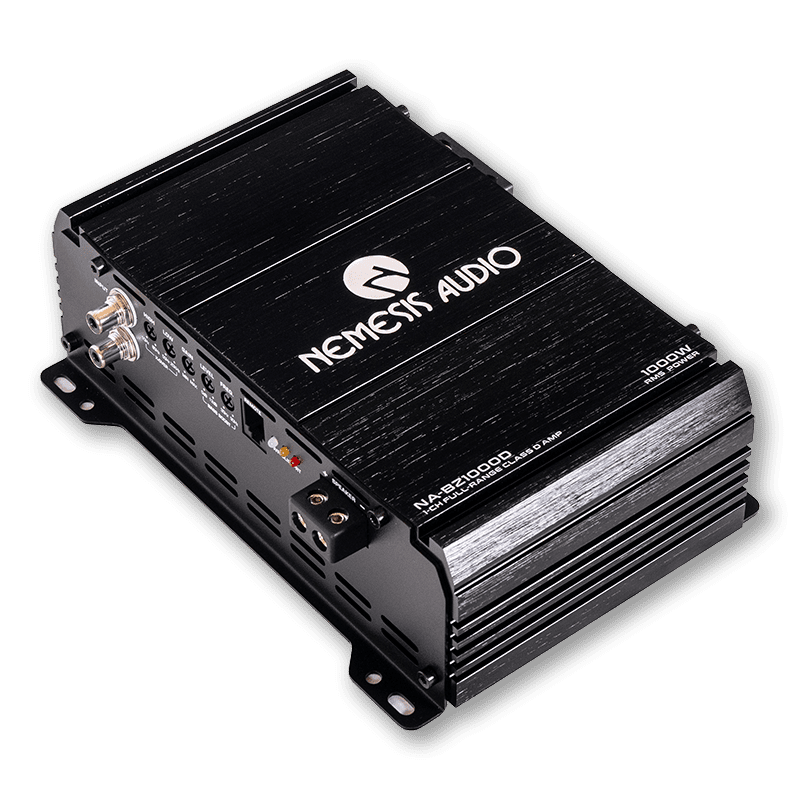

NA-BZ1000D 1000W RMS Mono Full Range Class D Amplifier

Description

The Nemesis Audio NA-BZ1000D is a compact mono full range Class D amplifier designed for efficient power and flexible system tuning. Built for 1-ohm stable operation, it delivers up to 1000W RMS for high-output car audio systems.

Specifications

• Amplifier Type: Mono full range Class D
• RMS Power @ 4 Ohms: 1 x 450W
• RMS Power @ 2 Ohms: 1 x 830W
• RMS Power @ 1 Ohm: 1 x 1000W
• Working Impedance: 1 Ohm stable
• Input Sensitivity: 0.25V to 4V
• Low Pass Filter: 50Hz to 20kHz
• Subsonic Filter: 10Hz to 80Hz
• Bass Boost: 0dB to 12dB
• Frequency Response: 10Hz to 20kHz
• Signal-to-Noise Ratio: 85dB
• THD @ 4 Ohms: 0.4%
• Operating Voltage: 9V to 16V
• Fuse Rating: 80A
• Dimensions: 4.73 x 8.35 x 2.56 in

This amplifier is a strong match for systems that need dependable full range power in a smaller chassis.
